BF-SD30 Handheld Detector - Assembly Version

Product Description
The BF-SD30 handheld drone detector adopts self-developed low-power digital-analog hybrid reception technology and advanced power management technology. Equipped with high-gain, low-gain, and directional ultra-wideband antennas, it can accurately provide audio and vibration alerts for common civilian drones, including quadcopters, fixed-wing drones, DIY models, and racing drones. It ensures a very low false alarm rate even in complex electromagnetic environments.

Features
High sensitivity for alerts, low false alarm rate
Compact size, good protection
Works in conjunction with drone countermeasure backpacks

Applications

Used with portable drone jamming equipment to address the issue of delayed drone detection during operations.

Specifications

Operating Instructions

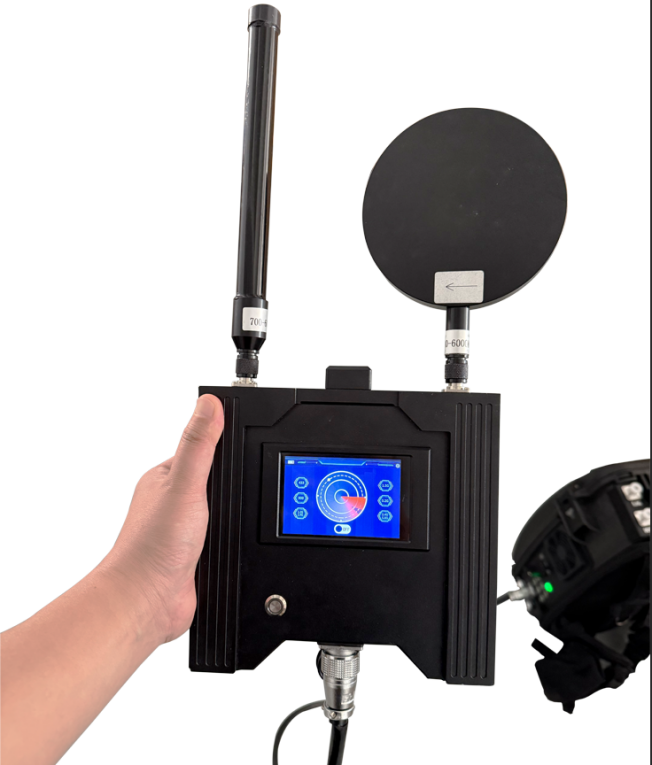

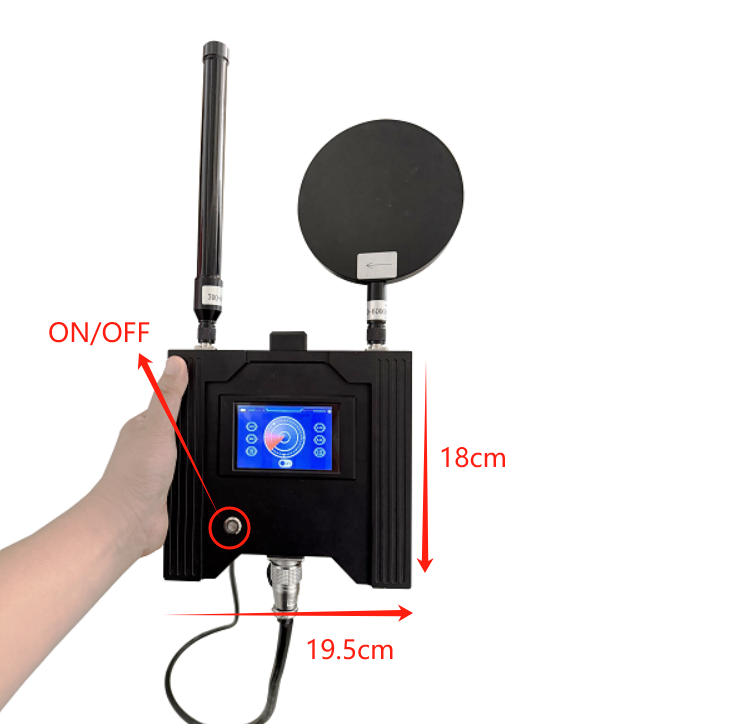

1.Attach antennas: O-marked: Directional; Round-marked: Omnidirectional

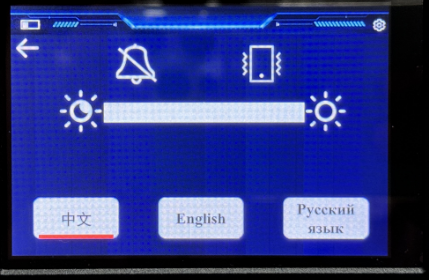

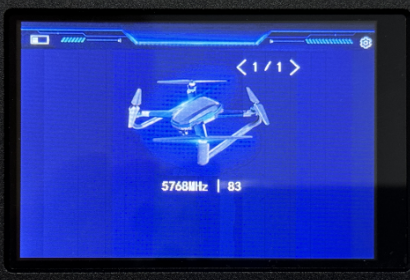

2.Connect to the drone countermeasure backpack. Turn on the switch to begin detection. In the upper right corner of the screen, set options for audio and vibration. When a drone is detected, the device vibrates, displays an image of the drone, and shows the drone's frequency band.

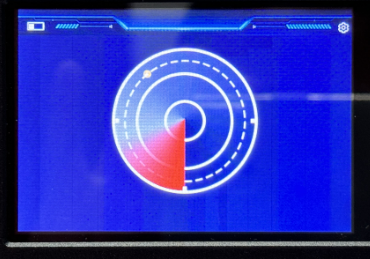

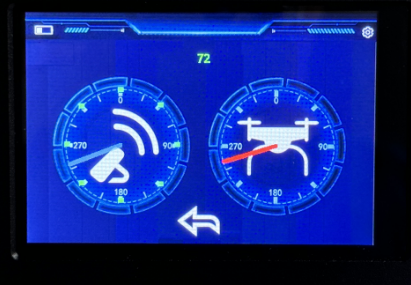

3.Tap the drone image to enter the directional interface. Rotate 360° in place to detect the drone's direction. When the arrows of the two lines (blue on the left, red on the right) align, it indicates the drone's location.
4.Press the device button to activate the countermeasure device and enter the countermeasure mode.

5.After use, turn off the countermeasure device and detach the antennas.

Product List

Notes

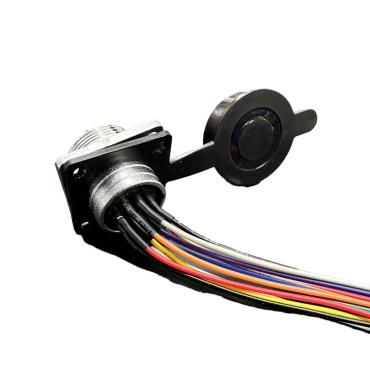

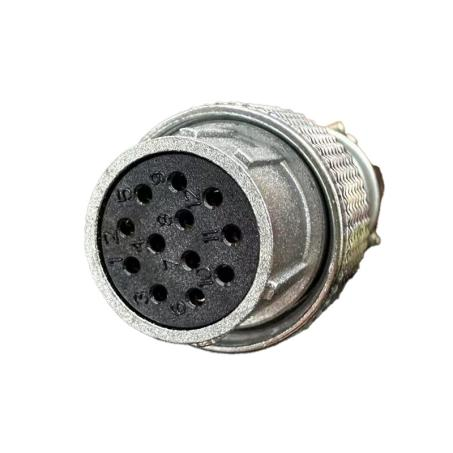

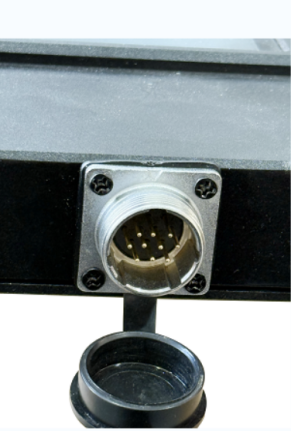

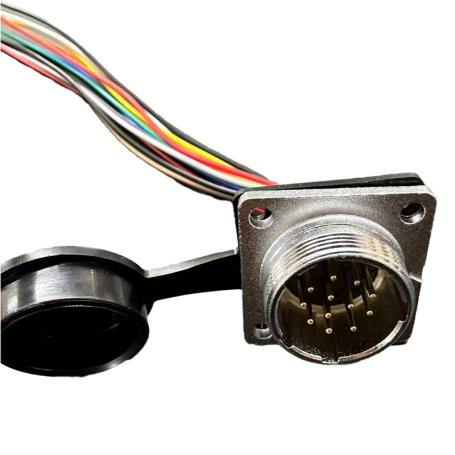

Equipped with Canon connectors; select type based on backpack channels
