Product features
1. the use of UHF broadband seamless interference technology.
2. single switch technology control power output.
3. 6 channel output, counter more UAV models.
4. highly integrated shielding module, stable output, accurate countermeasures.
5. effective power (channel power) is high, interference distance is far.
6. effective segmentation, only interfere with drone control and video transmission frequency, will not cause interference to other frequencies.
7. the use of built-in battery (pluggable design, battery removable).
8. imported devices, slow start circuit design, can avoid the mechanical switch caused by the ignition phenomenon, high integration, stable work.

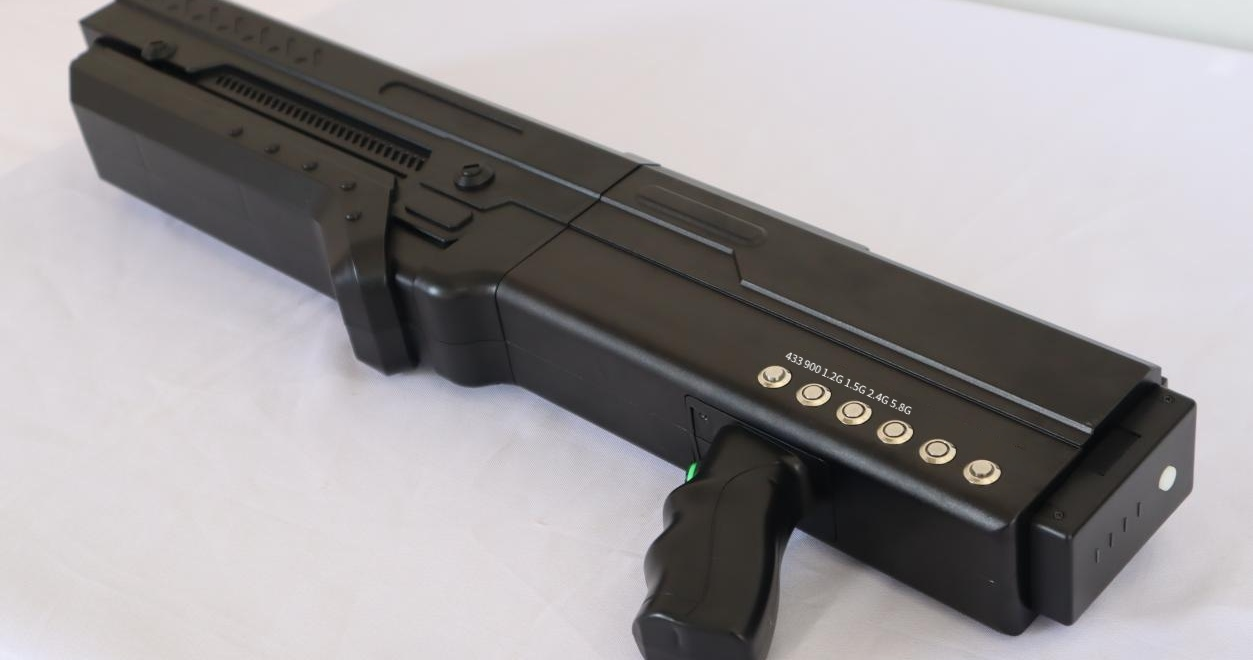

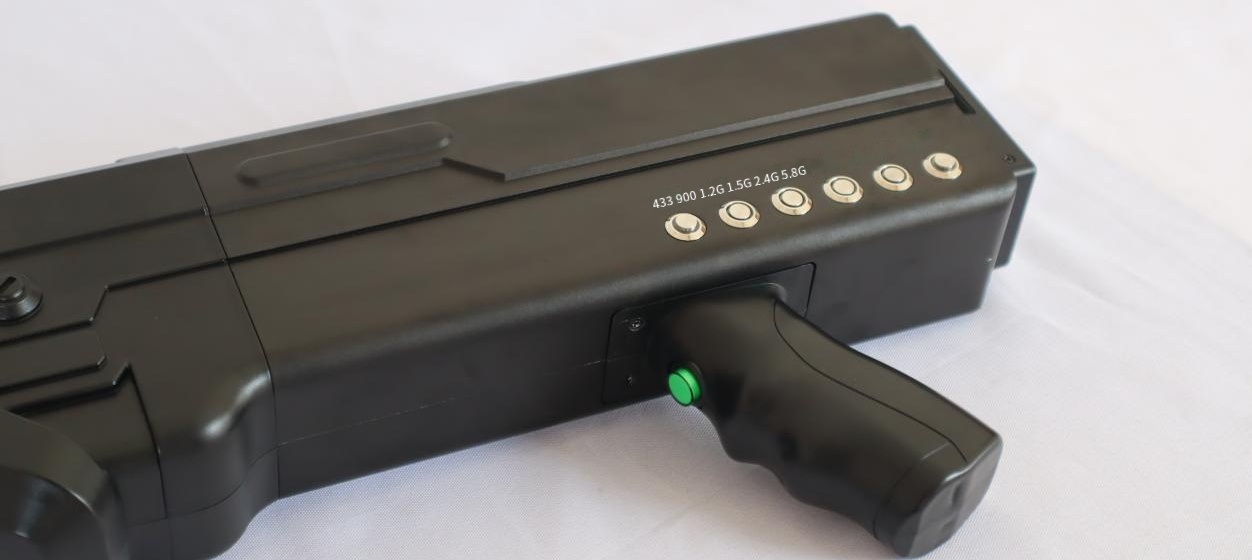

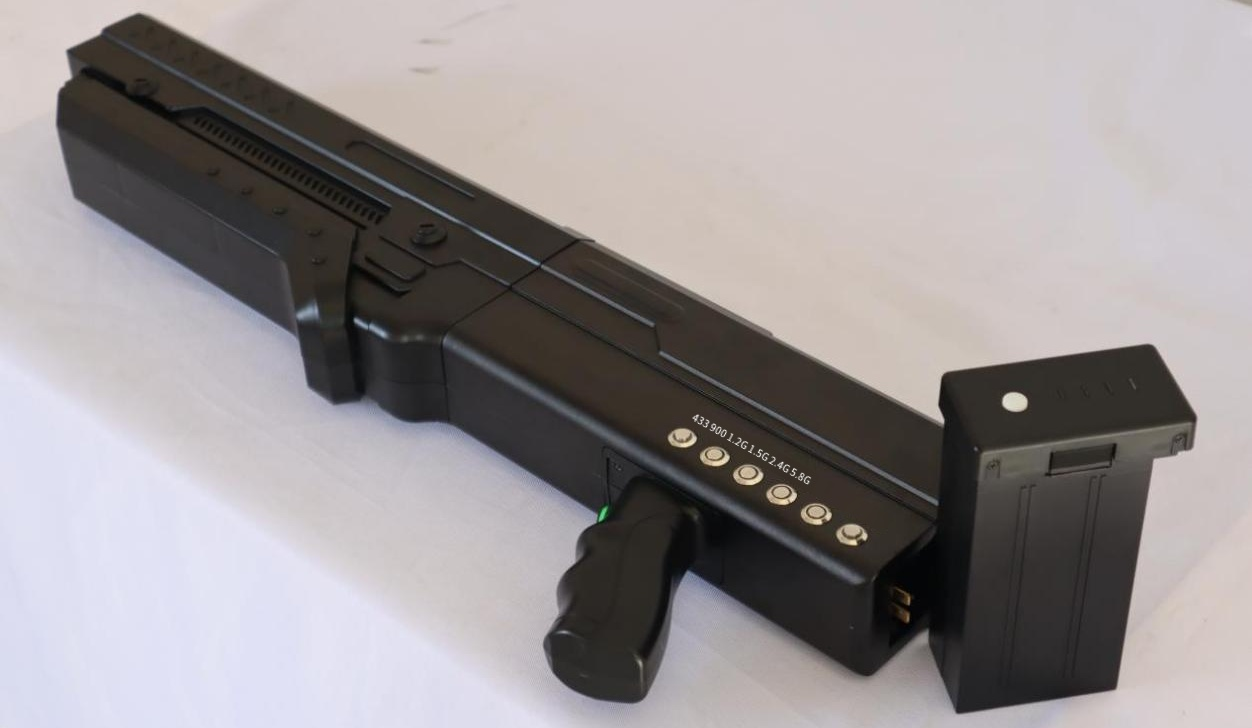

Second, product real shooting
 |
 |
 | |
Third, product parameters
| Output end | Operating frequency | Output power |
| 433M | 433MHz | 40dBm |
| 900M | 860-930MHz | 43dBm |
| 1.2 G | 1180-1280MHz | 40dBm |
| 1.5 G | 1550-1620MHz | 40dBm |
| 2.4 G | 2400-2500MHz | 46dBm |
| 5.8 G | 5725-5850MHz | 45dBm |
| Battery :5A Power: 29.4V 2A | ||
| Weight of host: About 4.1Kg with pack weight: about 10.5Kg | ||
| Dimension (width × height × length) : 67.30.7.5cm Outer packing dimension: 77.40.14cm | ||
| Interference distance: 500-1200M (depending on the type of drone and the distance between the drone and the pilot) | ||

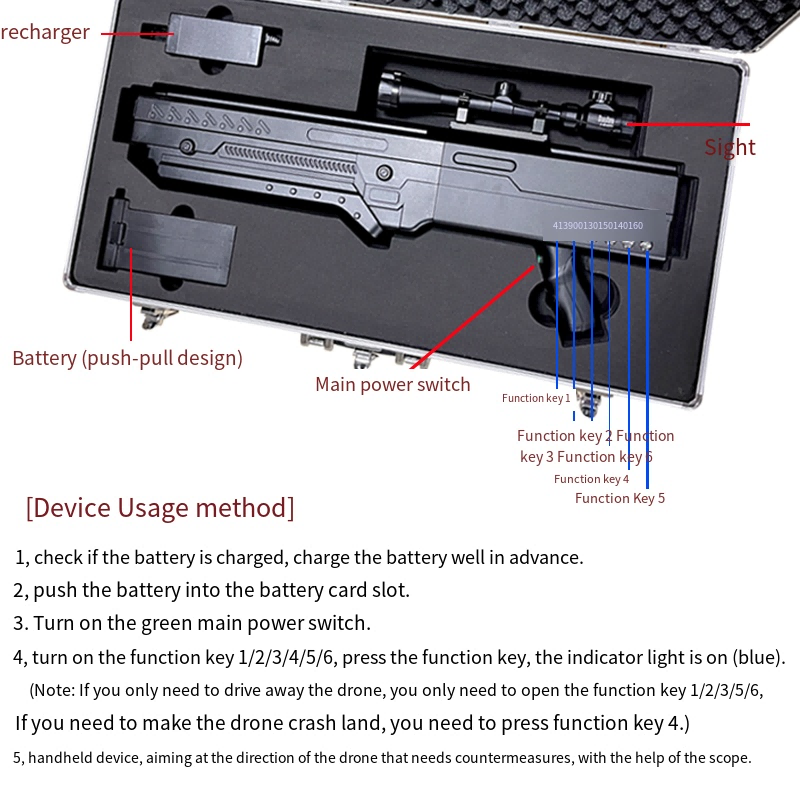

Iv. Operation
Five, related technology
1.wireless communication must ensure sufficient load-to-dry ratio (signal-to-noise ratio), in order to effectively receive, complete communication. The communication signal jammer is to destroy the receiving conditions of the UAV by generating interference signals with the same frequency as the UAV, cut off the communication connection between the UAV and the remote control transmission, and achieve the effect of interfering with the communication.
2. the interference power is certain, and the shielding radius of the unblocked space is jointly determined by the path attenuation and the control remote control transmission signal level.

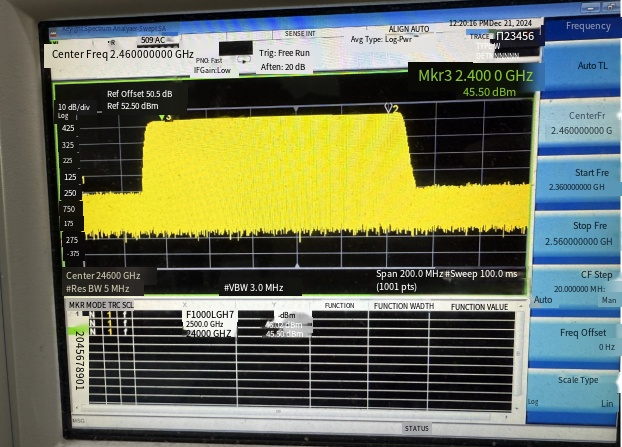

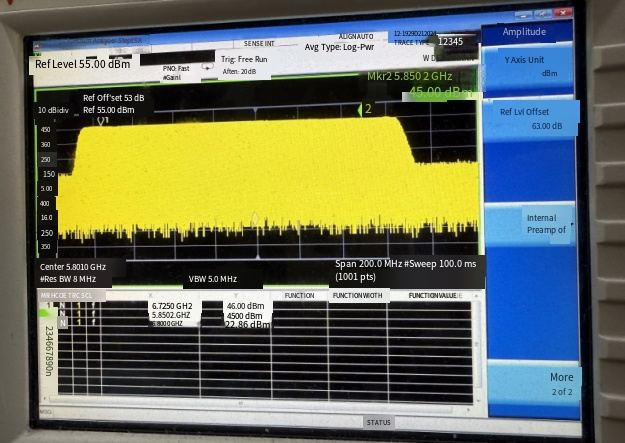

Six, test tools
Spectrum Analyzer
(Test frequency and power CXA Signal Analyzer N9000A 9kHz-7.5GHz)
 |
 |

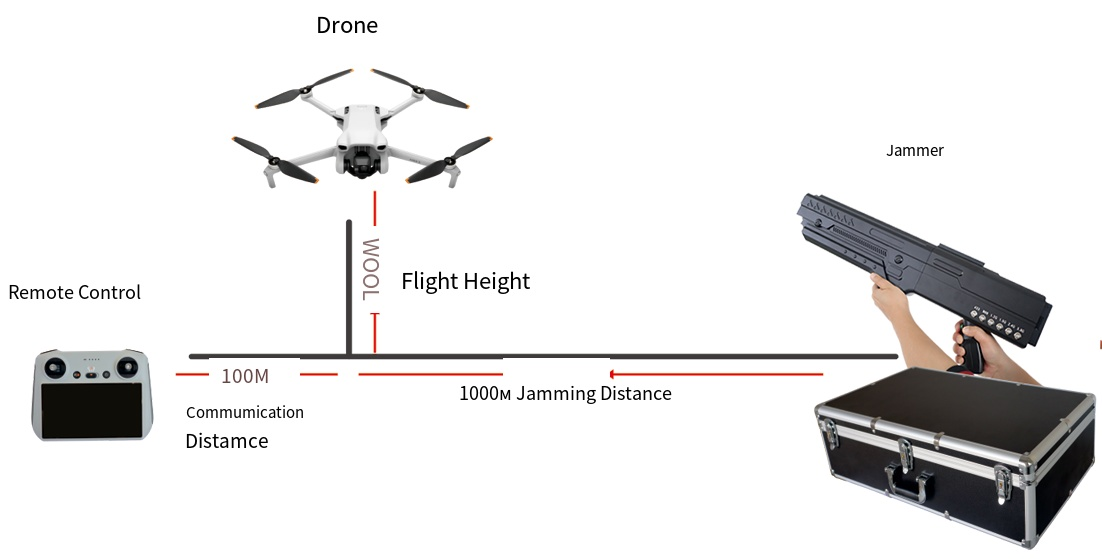

Use renderings
Eight, application scenarios
1. Government departments: prisons, courts, police stations, other law enforcement departments.
2. Infrastructure: gasoline stations, oil deportals, gas stations, airports, drug enforcement, security, etc.
3. Public facilities: stadiums, important events, etc.
4. Transportation equipment: ocean terminal, yacht, etc.
5. detention center, school, library, examination center, church, hospital, etc.
6. private villas, various private places, etc.
Precautions
1. because all frequency bands open easy to consume
This product is suitable for places where drones are not allowed to fly!
This product is strictly prohibited for use in illegal ways
