BF-T7 Handheld Shield

  • Overview
  • Recommended Products

Application Background
With the vigorous development of UAV market, UAV is widely used in all aspects of social life. It is inevitable that the use of UAV also brings some harms, such as the frequent occurrence of black flying UAV in no-fly areas, the use of UAV poisoning, and the application in the field of war.This product is mainly used in the black flying UAV, in
the field of vision, the black flying UAV to drive away or forced landing. The device is easy to carry, can be hand-held, portable. Its appearance is atmospheric and convenient for transportation.Can be customized 3-8 output,
can be customized power,to meet a variety of use scenarios and needs.

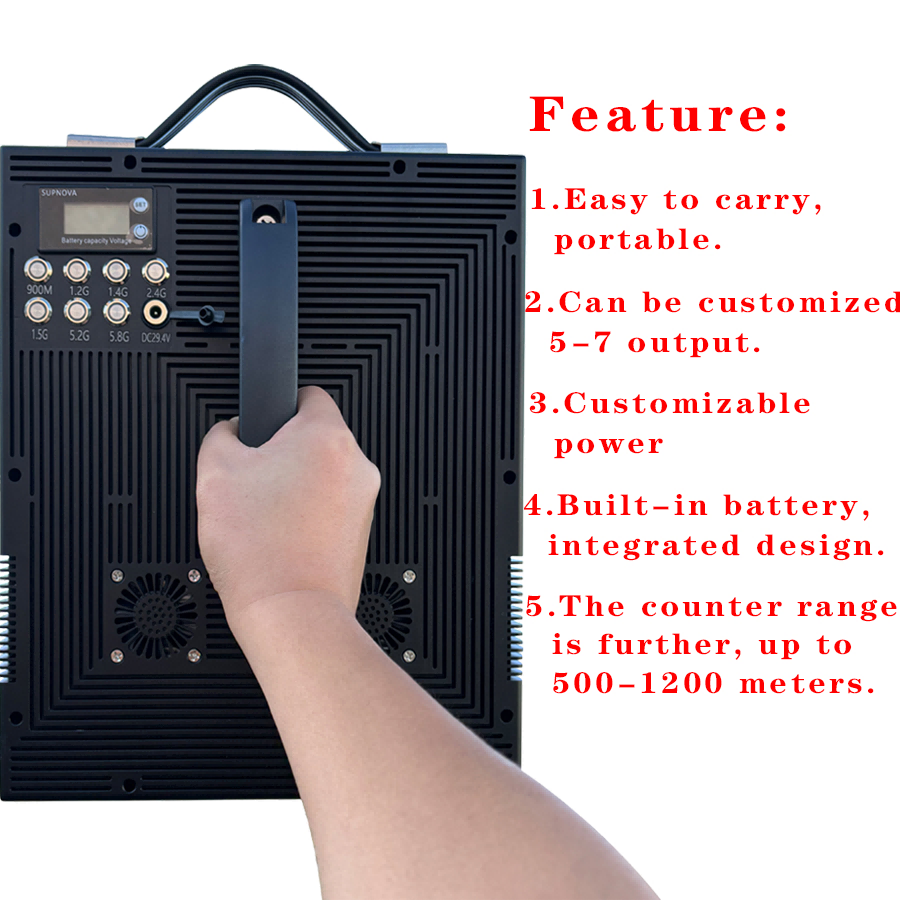

Product features
1 .Shield design, can be held, portable, easy to carry.
2 .The appearance of atmosphere, easy to transport.
3 .Multiple output, can counter many kinds of black flying UAV.
4 .Built-in battery, integrated design, more convenient operation.
5 .Single switch control, more freedom of operation.
6 .Highly optimized antenna, better counter range.
7 .With power display, easy to know the power.

Product parameters

Output terminal Operating frequency Output power Remarks
900M 860-930MHz 10W
1.2 G 1160-1280MHz 10W
1.4 G 1420-1450MHz 10W
1.5 G 1550-1620MHz 10W
2.4 G 2400-2500MHz 40W
5.2 G 5100-5300MHz 30W
5.8 G 5725-5850MHz 30W Can do 50W
Power supply: AC220V-DC5V Battery Capacity: 10A
Weight of host: 6.2kg With packing weight: about 9kg
Host size: 32.5·27.5·9cm Suitcase size: 39·35·20cm
Counter distance: Imperial 2 1000m imperial 3 500m (UAV flying height 100 m)

Operation

1.Check whether the appearance of the equipment is in good condition.
2.Open the power display button to check whether the power is sufficient.
3.Press all the function keys and the indicator light will show blue.
4.Hold the handle and point it in the direction you want to counter the drone.
5.After 30 seconds, the countermeasure device works and the drone is driven away or forced to land.
6.When the countermeasure is over, press the function key and the pilot light goes off.

BF-T7  Handheld Shield manufacture BF-T7  Handheld Shield supplier

After Sale
One year warranty from the date of sale.
